POF-3S Series P4 Outdoor Flexible LED Module – 320 × 160 mm Curved Soft Panel, Front Service Design
The POF-3S Series P4 outdoor flexible LED module is engineered for creative curved outdoor LED displays that require durability, weather resistance, and stable image performance. With a 4.0 mm pixel pitch and a flexible 320 × 160 mm soft panel structure, it delivers smooth curvature and reliable outdoor operation.
Ideal for outdoor architectural lighting, building facades, and creative advertising projects that demand both flexibility and robustness.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P4 Outdoor Flexible LED Module |
| 30-Pack Standard Pack | 30 × Power Supply Cables 30 × Data Cables 30 × P4 Outdoor Flexible LED Modules |
About this item
-
4.0 mm pixel pitch is optimized for medium to long viewing distances in outdoor LED display applications
-

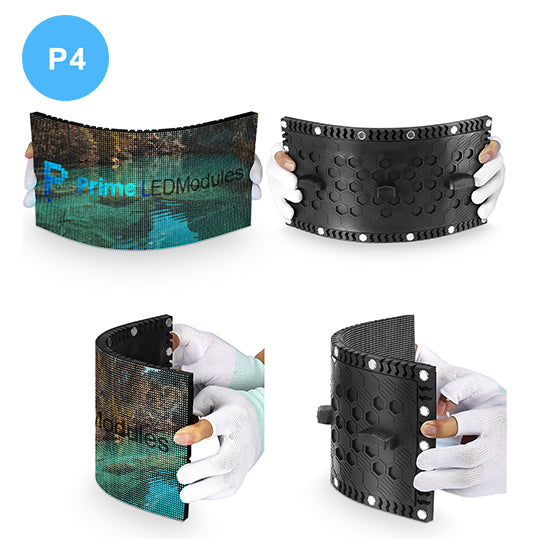

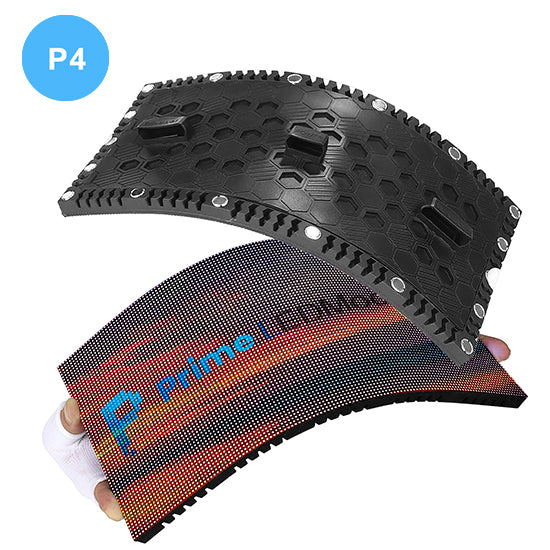

Flexible soft panel structure supports curved, cylindrical, wave-shaped, and custom architectural LED designs
-
Front service design allows easy maintenance and replacement without rear access, ideal for outdoor wall mounting
-
Outdoor-grade materials provide excellent resistance to rain, dust, humidity, and temperature changes
-
High brightness output ensures clear visibility even in daylight environments
-
High refresh rate guarantees stable, flicker-free visuals for advertising and video content
-
High-quality LED chips deliver uniform brightness, stable color performance, and long operational lifespan
-
Designed for outdoor creative LED displays, architectural facades, and dynamic advertising installations
Installation & Maintenance Tips
-
Ensure waterproof sealing is properly applied during installation to maintain IP65 protection
-
Use outdoor-rated power supplies and signal cables for stable long-term operation
-
Do not bend the module beyond the recommended curvature radius to avoid internal circuit damage
-
Front service structure allows fast maintenance, making it suitable for high-wall or facade installations
-
Regularly inspect connectors and seals to prevent moisture ingress
-
Clean the module surface gently using a soft cloth and avoid corrosive cleaning agents
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Reinforced packaging with waterproof and shock-absorbing materials
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications (Datasheet Download)
| Specification | Detail |
|---|---|
| Series | POF-3S |
| Product Type | Outdoor Flexible LED Module |
| Pixel Pitch | 4.0 mm |
| Pixel Configuration | 1R1G1B (Full Color) |
| LED Configuration | SMD1921 |
| Module Resolution | 80 × 40 dots |
| Pixel Density | 62,500 dots/m² |
| Module Dimensions | 320 × 160 × 12 mm |
| Module Weight | 0.6 kg |

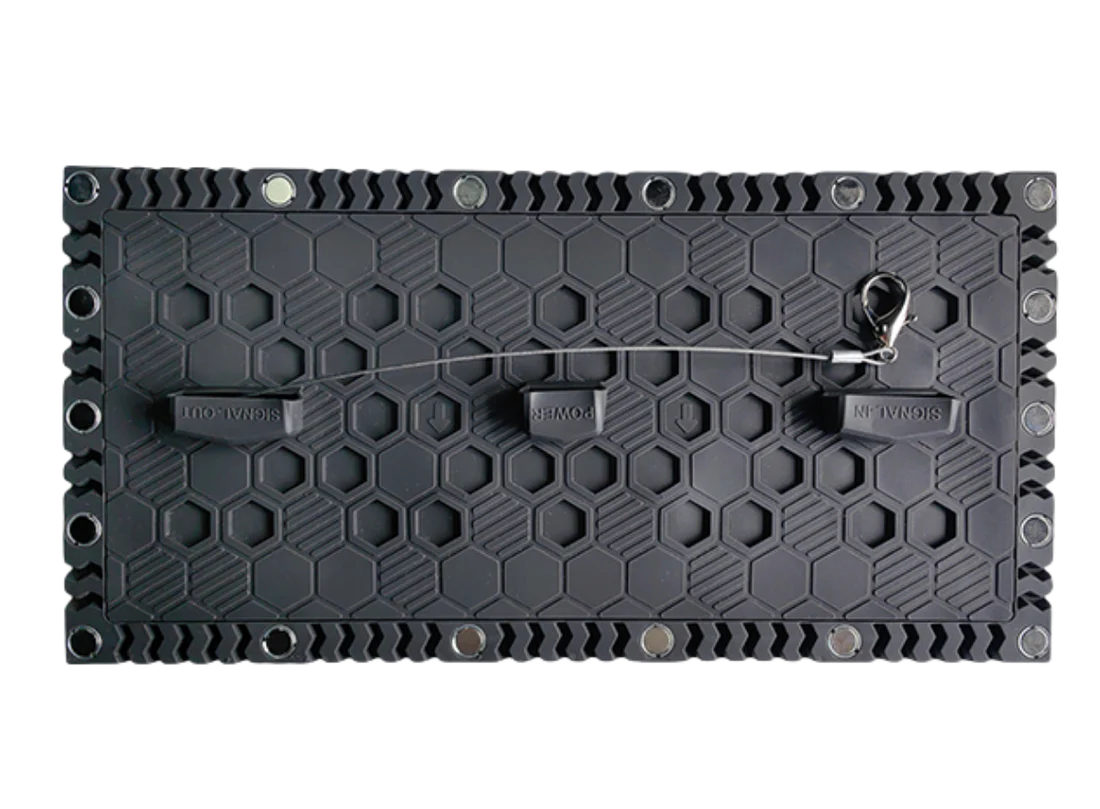

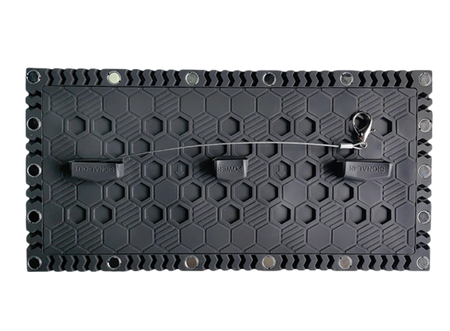

| Connector Type | HUB75 (One inlet, one outlet) |
| Module Base Material | Silicone soft bottom case |
| Curvature | 162° |
| Assembly Diameter | 1019 mm |
| Smoothness | ≤ 0.5 mm |
| Standard Constant Current IC | PWM |
| Color Processing | 13-bit |
| Gray Level | 13-bit grayscale |
| Refresh Rate | 3840 Hz |
| Frame Rate | 60 Hz |
| Scan Mode | 1/10 |
| Brightness | 4500 nits |
| Color Temperature | 9000–9500 K adjustable |
| Coordinates | X: 0.2800 / Y: 0.3000 ± 0.01 |
| Viewing Angle | 140° (H) / 120° (V) |
| Contrast Ratio | 4000:1 |
| Input Voltage | DC 5 V |
| Module Maximum DC Current | 7 A |
| Max Power Consumption | 30 W per module |
| Operating AC Input Voltage | 220 V |
| Peak Power Consumption | 600 W/m² |
| Average Power Consumption | 170 W/m² |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 20%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front installation / maintenance |
| IP Rating | IP65 |
| UV Resistance | Yes |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
Applications
-
Outdoor building facade LED displays
-
Creative curved LED walls for commercial plazas
-
Architectural lighting and media facades
-
Outdoor advertising billboards and signage
-
Theme parks and entertainment venue displays
-
Custom-shaped outdoor LED video walls requiring flexibility, brightness, and weather resistance
