POF-3S Series P3.076 Outdoor Flexible LED Module – 320×160mm Curved Soft Panel | 3.076mm Pixel Pitch | High Brightness | 1pcs / 30pcs
Couldn't load pickup availability
POF-3S Series P3.076 Outdoor Flexible LED Module – 320 × 160 mm Curved Soft Panel, High-Brightness Front Service Design
The POF-3S Series P3.076 outdoor flexible LED module is designed for high-impact creative outdoor displays that require superior brightness, flexible curvature, and long-term weather resistance. With a 3.076 mm pixel pitch and a 320 × 160 mm soft panel structure, it delivers smooth curved visuals and excellent visibility in bright outdoor environments.
Perfect for architectural media facades, outdoor advertising, and creative LED installations where flexibility and high brightness are essential.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P3.076 Outdoor Flexible LED Module |
| 30-Pack Standard Pack | 30 × Power Supply Cables 30 × Data Cables 30 × P3.076 Outdoor Flexible LED Modules |
About this item
-
3.076 mm pixel pitch provides a balance between image detail and long-distance visibility, ideal for outdoor creative displays
-
High-brightness design ensures excellent visibility even under strong sunlight conditions
-

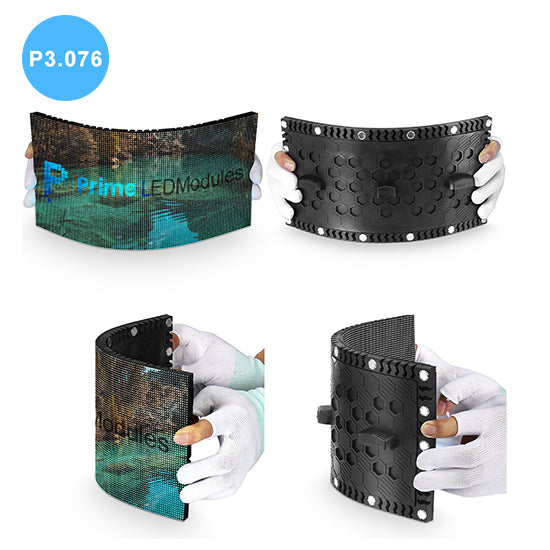

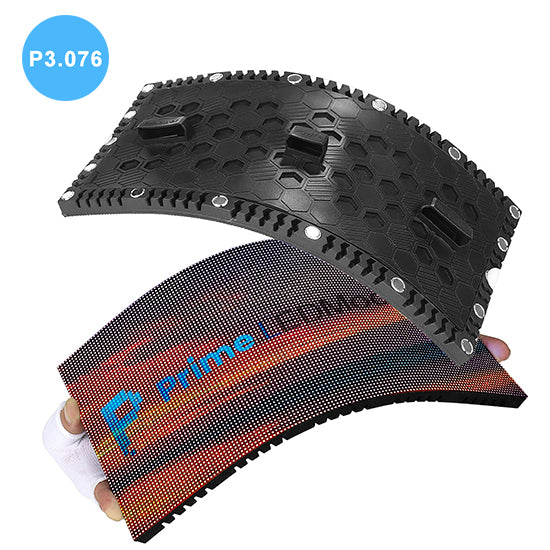

Flexible soft panel structure supports curved, cylindrical, wave-shaped, and custom architectural LED designs
-

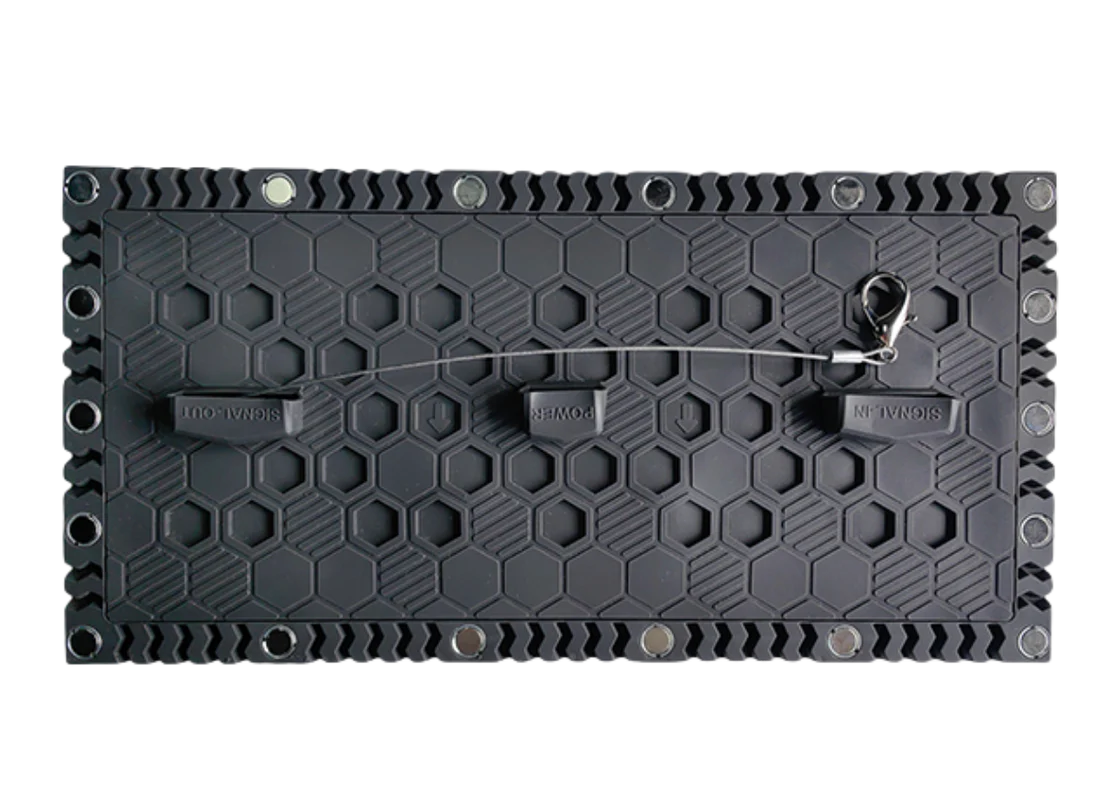

Front service design enables quick maintenance and replacement without rear access, perfect for outdoor wall mounting
-
Outdoor-grade materials provide reliable protection against rain, dust, humidity, and temperature variations
-
High refresh rate delivers smooth, flicker-free visuals for advertising videos and dynamic content
-
Premium LED chips ensure uniform brightness, stable color performance, and long operational lifespan
-
Designed for outdoor creative LED displays, architectural facades, and high-impact advertising projects
Installation & Maintenance Tips
-
Ensure all waterproof seals and connectors are properly secured during installation
-
Use outdoor-rated power supplies and signal cables for stable long-term operation
-
Do not bend beyond the recommended curvature radius to avoid internal circuit damage
-
Front service design simplifies maintenance for wall-mounted or facade installations
-
Regularly inspect power and data connectors to prevent moisture ingress
-
Clean the surface with a soft cloth and avoid corrosive or abrasive cleaning agents
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Reinforced packaging with shock-absorbing and waterproof protection
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications (Datasheet Download)
| Specification | Detail |
|---|---|
| Series | POF-3S |
| Product Type | Outdoor Flexible LED Module |
| Pixel Pitch | 3.076 mm |
| Pixel Configuration | 1R1G1B (Full Color) |
| LED Configuration | SMD1921 |
| Module Resolution | 104 × 52 dots |
| Pixel Density | 105,625 dots/m² |
| Module Dimensions | 320 × 160 × 12 mm |
| Module Weight | 0.61 kg |
| Connector Type | HUB75 (One inlet, one outlet) |
| Standard Constant Current IC | PWM |
| Module Base Material | Silicone soft bottom case |
| Curvature | 162° |
| Assembly Diameter | 1019 mm |
| Smoothness | ≤ 0.5 mm |
| Color Processing | 13-bit |
| Gray Level | 13-bit grayscale |
| Refresh Rate | 3840 Hz |
| Frame Rate | 60 Hz |
| Scan Mode | 1/13 |
| Brightness | 4500 nits |
| Color Temperature | 9000–9500 K adjustable |
| Coordinates | X: 0.2800 / Y: 0.3000 ± 0.01 |
| Viewing Angle | 140° horizontal / 120° vertical |
| Contrast Ratio | 4000:1 |
| Input Voltage | DC 5 V |
| Module Maximum DC Current | 7 A |
| Max Power Consumption | 30 W per module |
| Operating AC Input Voltage | 220 V |
| Peak Power Consumption | 600 W/m² |
| Average Power Consumption | 170 W/m² |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 20%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front installation / maintenance |
| IP Rating | IP65 |
| UV Resistance | Yes |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
Applications
-
Outdoor architectural media facades
-
Creative curved LED walls for commercial plazas
-
High-brightness outdoor advertising displays
-
Theme parks and entertainment venues
-
Shopping malls and public square installations
-
Custom-shaped outdoor LED video walls requiring flexibility, durability, and high visibility
