POF-3S Series P2.5 Outdoor Flexible LED Module – 320 × 160 mm Bendable Panel, High-Resolution Front Service Design
The POF-3S Series P2.5 outdoor flexible LED module is engineered for high-resolution outdoor creative displays that require excellent image clarity, strong brightness, and reliable weather resistance. With a 2.5 mm pixel pitch and a flexible 320 × 160 mm panel structure, it delivers smooth curvature and sharp visuals for premium outdoor LED projects.
Ideal for architectural media facades, high-end outdoor advertising, and creative curved LED walls where both resolution and durability are critical.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P2.5 Outdoor Flexible LED Module |
| 30-Pack Standard Pack | 30 × Power Supply Cables 30 × Data Cables 30 × P2.5 Outdoor Flexible LED Modules |
About this item
-
2.5 mm pixel pitch delivers higher image resolution for outdoor displays that require closer viewing distances
-

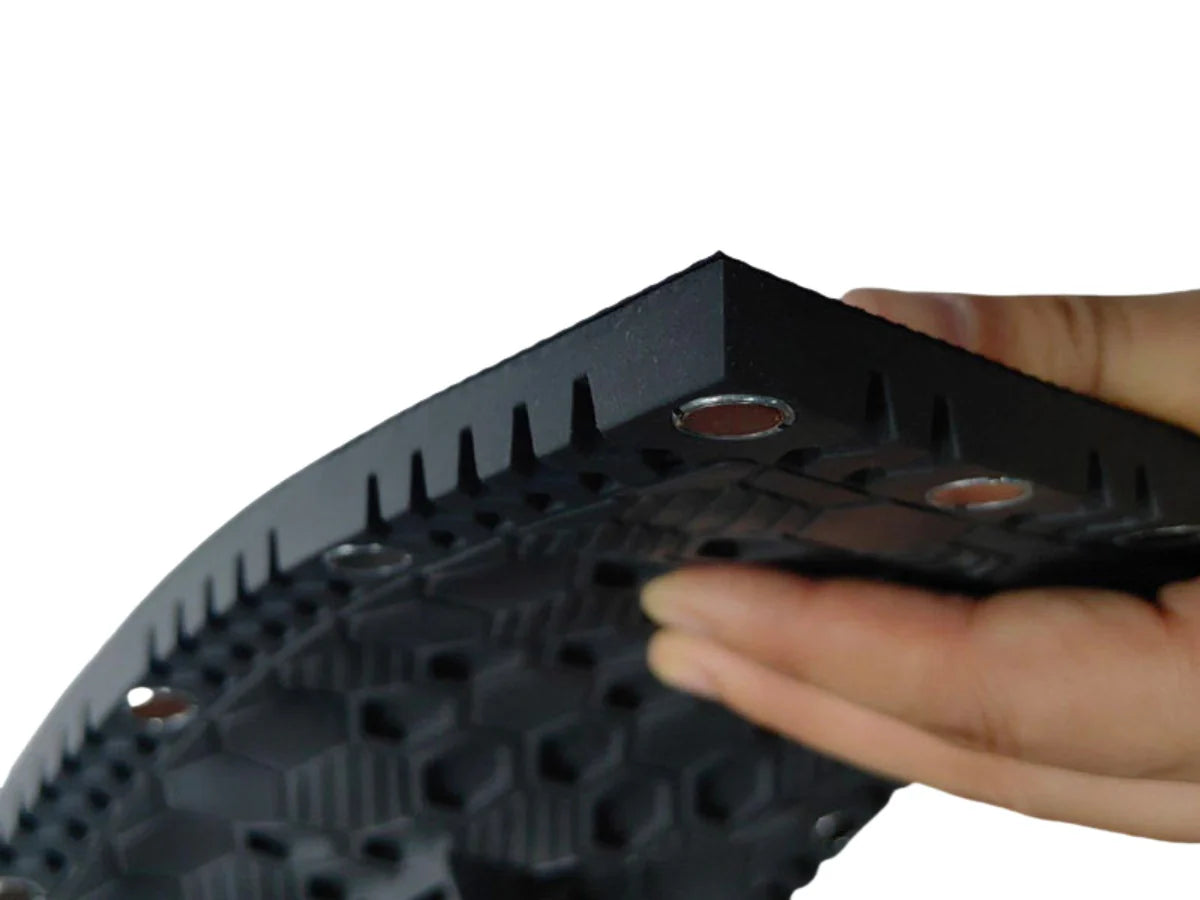

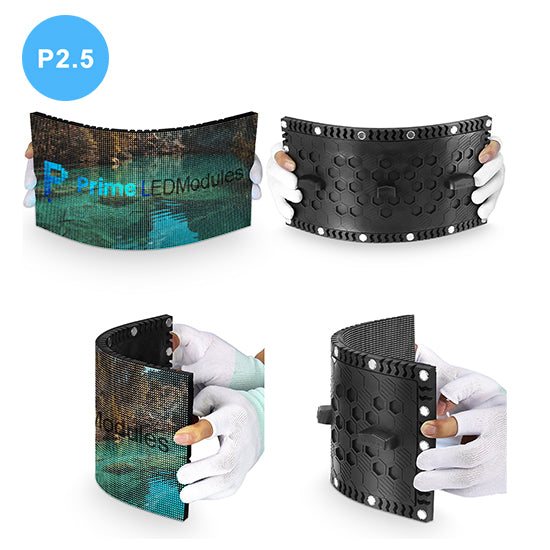

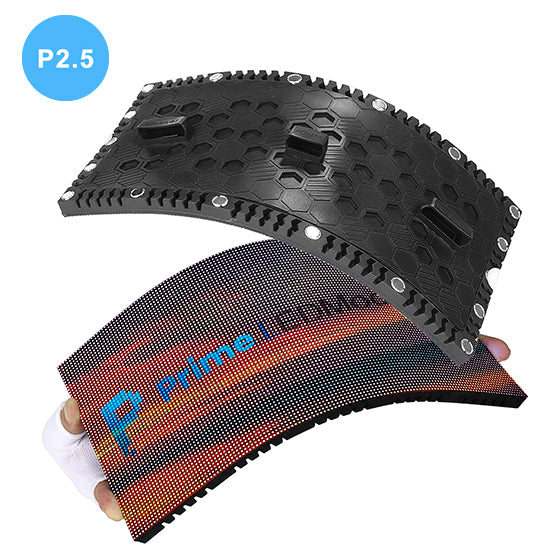

Flexible bendable panel design supports curved, cylindrical, wave-shaped, and custom architectural LED installations
-
Front service structure allows easy maintenance and module replacement without rear access
-
High-brightness output ensures clear visibility even under strong sunlight
-
Outdoor-grade construction provides excellent resistance to rain, dust, humidity, and harsh environments
-
High refresh rate ensures smooth, flicker-free video playback for advertising and dynamic visual content
-
Premium LED chips guarantee uniform brightness, stable color consistency, and long service life
-
Designed for high-resolution outdoor creative LED displays, building facades, and premium advertising applications
Installation & Maintenance Tips
-

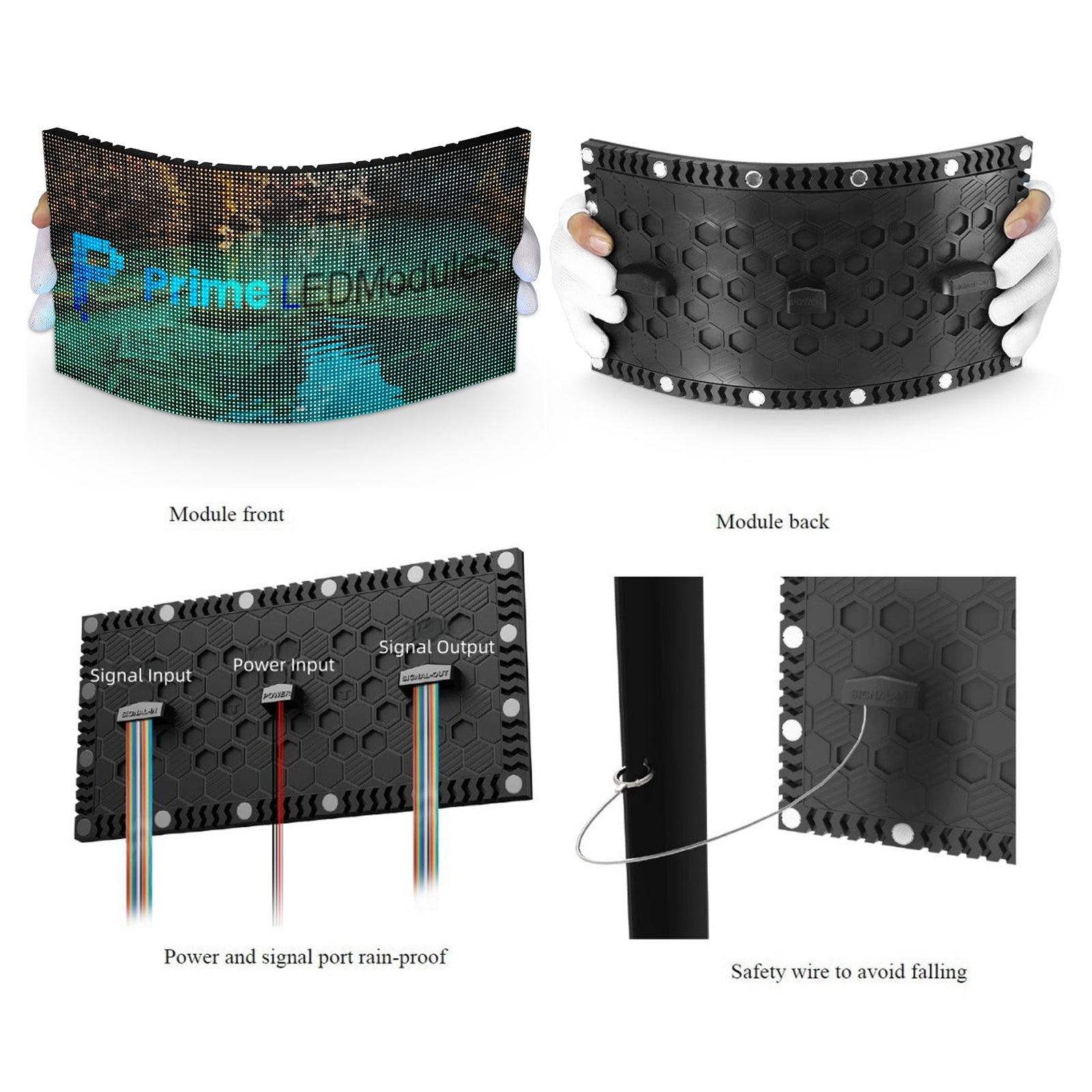

Ensure all waterproof seals and connectors are properly installed to maintain IP65 protection
-
Use outdoor-rated power supplies and signal cables for long-term stable operation
-
Avoid bending beyond the recommended curvature radius to protect internal circuits
-
Front service design simplifies maintenance for wall-mounted and facade installations
-
Regularly inspect power and data connectors to prevent moisture ingress
-
Clean the module surface gently using a soft cloth and avoid corrosive or abrasive cleaners
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Reinforced packaging with waterproof and shock-absorbing materials
-
Shipping Origin: Shipped directly from warehouse
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications (Datasheet Download)
| Specification | Detail |
|---|---|
| Series | POF-3S |
| Product Type | Outdoor Flexible LED Module |

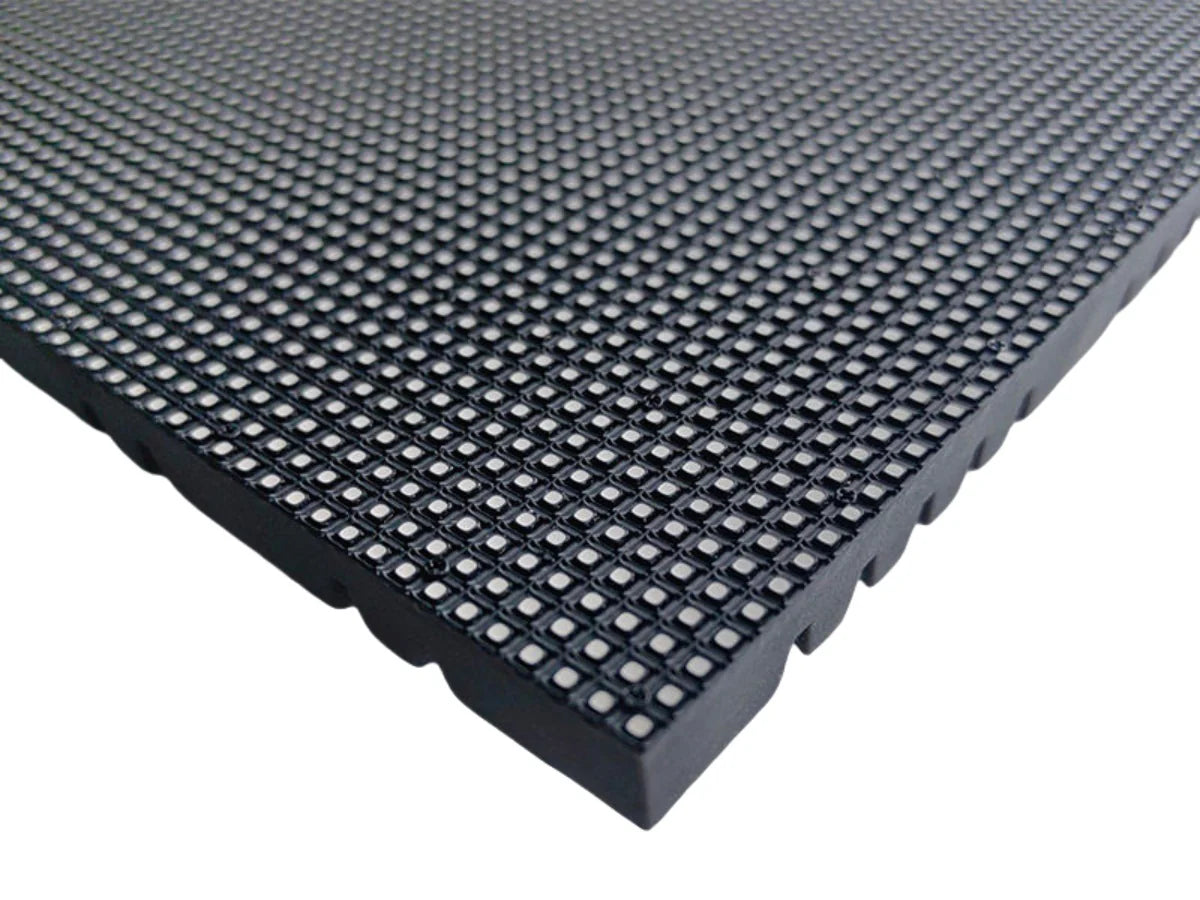

| Pixel Pitch | 2.5 mm |
| Pixel Configuration | 1R1G1B (Full Color) |
| LED Configuration | SMD1415 |
| Module Resolution | 128 × 64 dots |
| Pixel Density | 160,000 dots/m² |
| Module Dimensions | 320 × 160 × 12 mm |
| Module Weight | 0.58 kg |

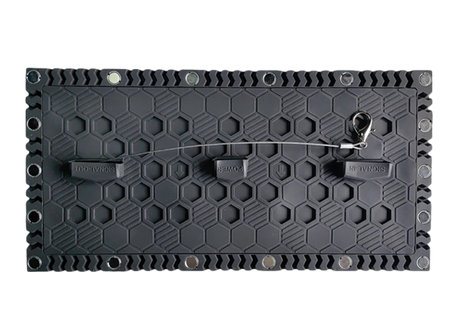

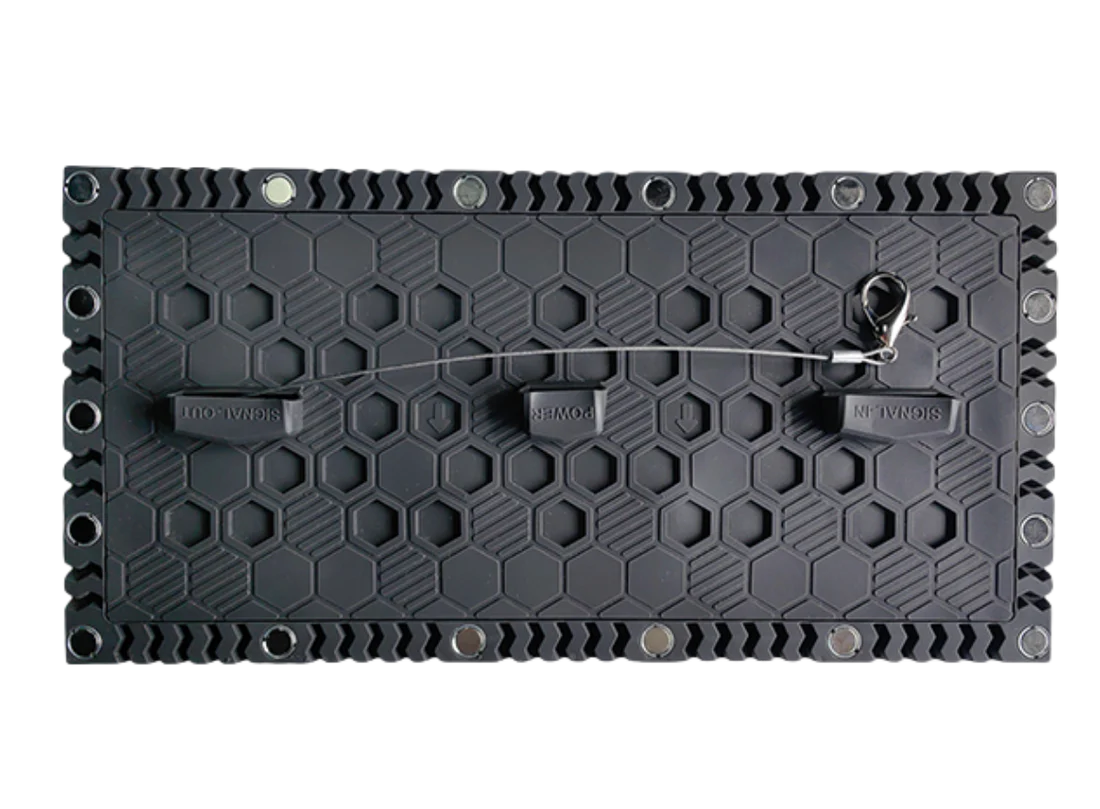

| Connector Type | HUB75 (One inlet, one outlet) |
| Standard Constant Current IC | PWM |

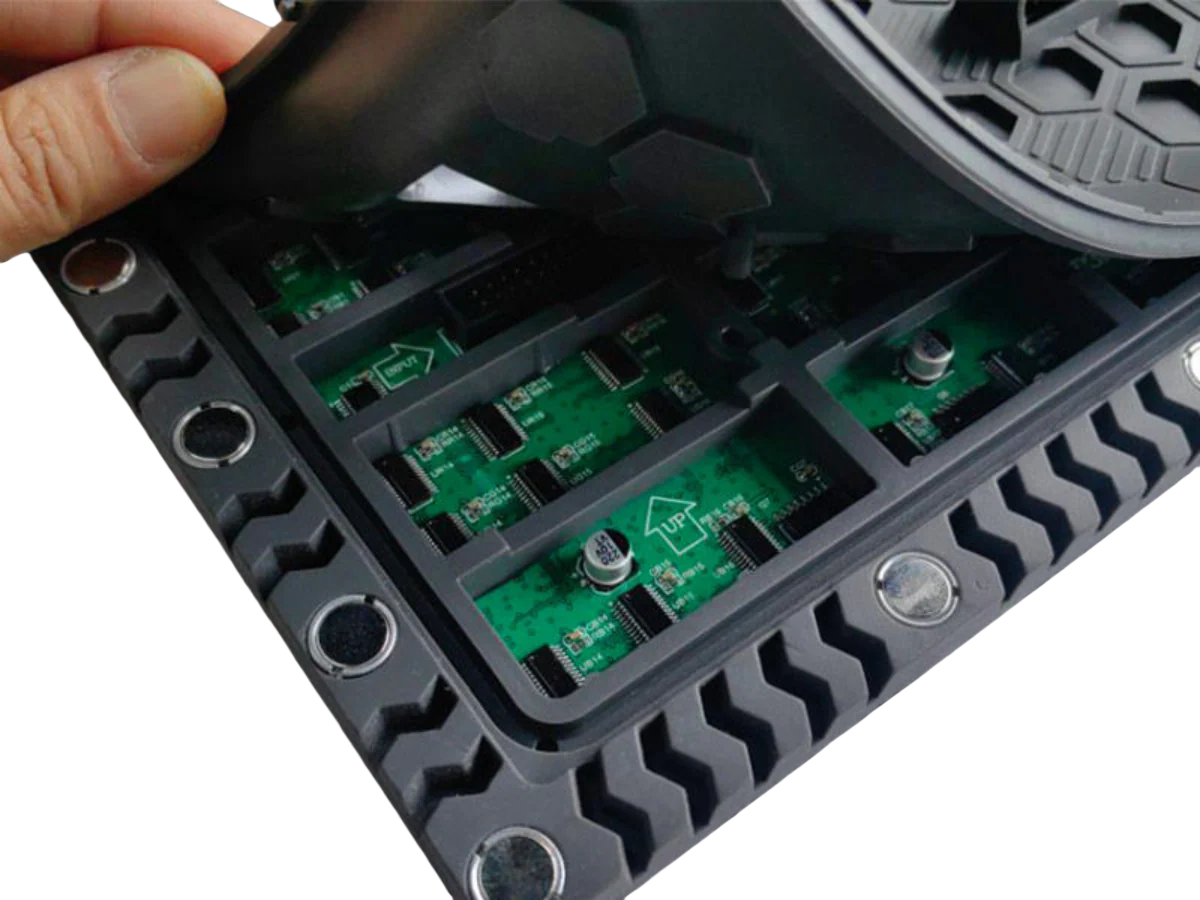

| Module Base Material | Silicone soft bottom case |
| Curvature | 162° |
| Assembly Diameter | 1019 mm |
| Smoothness | ≤ 0.5 mm |
| Color Processing | 13-bit |
| Gray Level | 13-bit grayscale |
| Refresh Rate | 3840 Hz |
| Frame Rate | 60 Hz |
| Scan Mode | 1/16 |
| Brightness | 4500 nits |
| Color Temperature | 9000–9500 K adjustable |
| Coordinates | X: 0.2800 / Y: 0.3000 ± 0.01 |
| Viewing Angle | 140° horizontal / 120° vertical |
| Contrast Ratio | 4000:1 |
| Input Voltage | DC 5 V |
| Module Maximum DC Current | 7 A |
| Max Power Consumption | 35 W per module |
| Operating AC Input Voltage | 220 V |
| Peak Power Consumption | 700 W/m² |
| Average Power Consumption | 223 W/m² |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 20%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front installation / maintenance |
| IP Rating | IP65 |
| UV Resistance | Yes |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
Applications
-
High-resolution outdoor architectural media facades
-
Creative curved LED walls for commercial plazas and shopping centers
-
Premium outdoor advertising billboards
-
Theme parks and entertainment venues
-
Public squares and landmark installations
-
Custom-shaped outdoor LED video walls requiring flexibility, durability, and fine image detail
