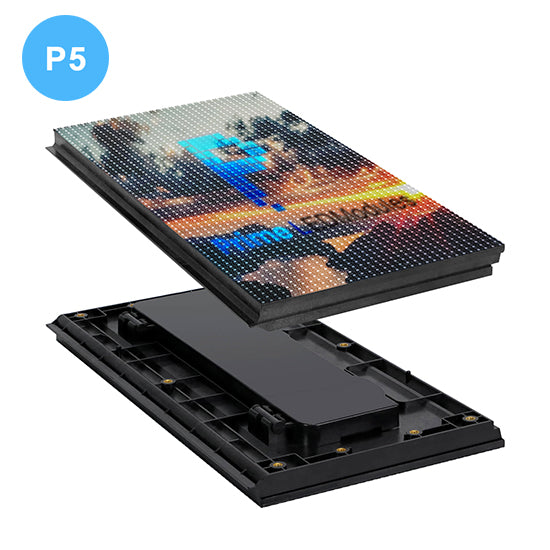

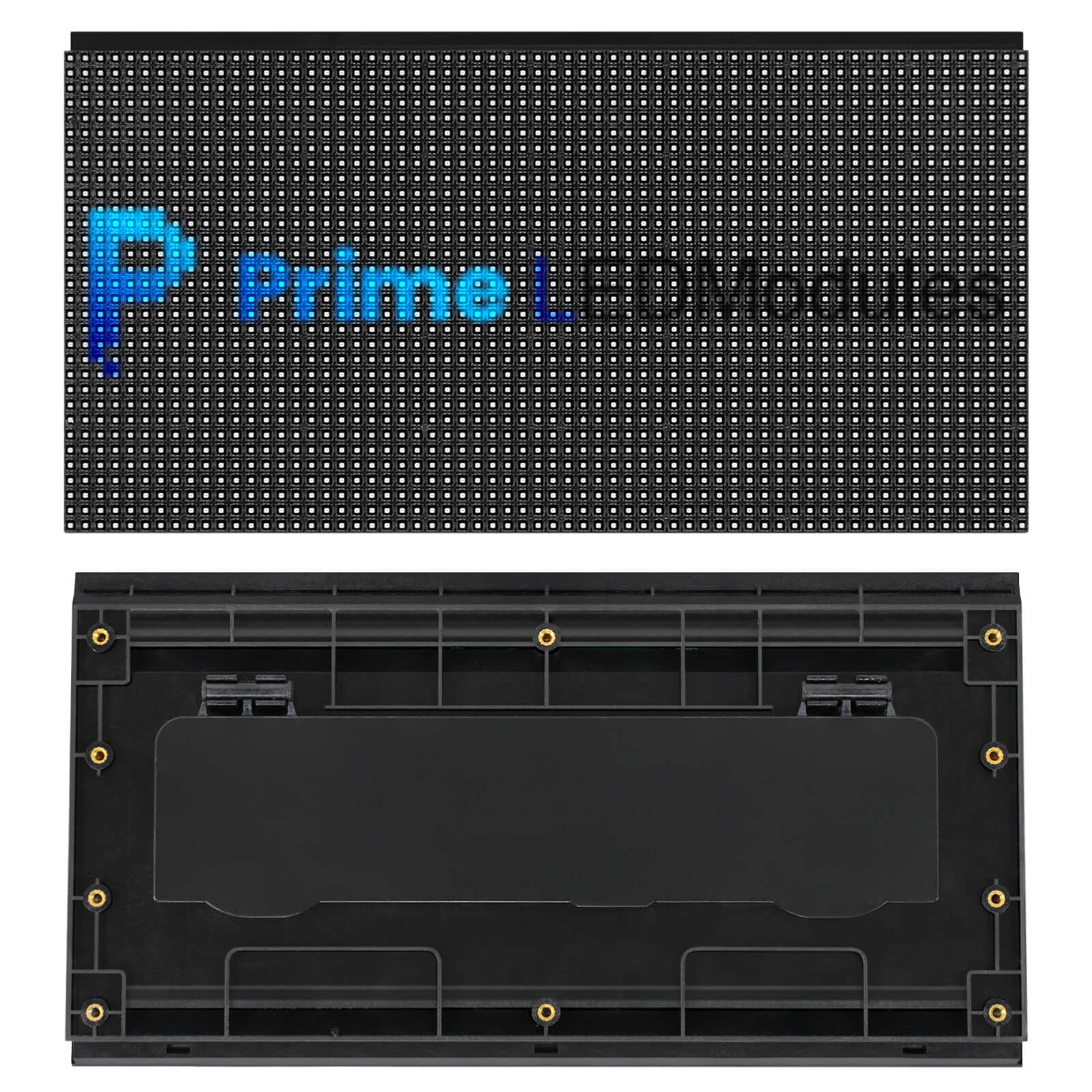

POD-WS Series P5 Outdoor LED Module – 320 × 160 mm IP65 Panel for Advertising Screens
The POD-WS Series P5 outdoor LED module is engineered for high-impact commercial outdoor displays that demand strong brightness, stability, and long-term weather resistance.
With a 5 mm pixel pitch and IP65 waterproof protection, it is ideal for outdoor advertising screens, stadium ribbon boards, building façades, and large digital signage projects.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × P5 Outdoor LED Module |
| 1 × 5V Power Cable | |
| 1 × Data Cable | |
| 30-Pack Standard Pack | 30 × P5 Outdoor LED Modules |
| 15 × 5V Power Cables | |
| 30 × Data Cables |
About this item
• 5 mm pixel pitch is optimized for medium- and long-distance viewing in outdoor advertising screens
• IP65 waterproof and dustproof design ensures stable performance in rain, dust, and harsh outdoor environments
• High-brightness SMD LEDs deliver excellent daylight visibility and strong image impact
• Standard 320 × 160 mm module size ensures easy replacement and compatibility with outdoor LED cabinets
• Copper-wired LED configuration enhances electrical stability and long service life
• High refresh rate provides smooth, flicker-free video playback for broadcasting and camera shooting
• Wide viewing angle ensures clear visibility from multiple directions
• Uniform brightness and accurate color calibration guarantee consistent image quality across large displays
• Designed for outdoor fixed installations and rental LED walls requiring durability and reliability
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 5 mm |
| Module Size | 320 × 160 mm |
| Resolution | 64 × 32 dots |
| LED Type | SMD |
| Pixel Density | 40,000 dots/m² |
| Brightness | ≥ 4,000 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/8 |
| Viewing Angle | 140° (H) / 130° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Magnetic Front Service / Screw Rear Service |
| Protection Grade | IP65 |
Installation & Maintenance Tips
• Use LED modules from the same batch to ensure uniform color and brightness
• Seal all cabinet joints properly to maintain IP65 waterproof performance
• Apply outdoor-rated waterproof connectors for both power and signal cables
• Avoid bending, impact, or excessive force during handling and installation
• Regularly inspect power cables, data cables, and waterproof gaskets
• Ensure stable DC5V power supply to prevent voltage drop
• Clean the surface periodically to maintain optimal brightness and heat dissipation
Shipping Information
• Lead Time: In-stock products ship within 1–3 business days
• Packaging: Safe packaging with foam padding to ensure safe transport
• Shipping Origin: All products ship directly from our warehouse
• Standard Shipping: 9–18 days
• Express Shipping: 5–9 days
• Shipping Costs: Calculated based on cart weight, dimensions, and destination
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-WS |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 5 mm |
| LED Configuration | Copper Wired SMD1921 |
| Module Resolution | 64 × 32 dots |
| Pixel Density | 40,000 dots/m² |
| Module Dimensions | 320 × 160 × 16 mm |
| Connector Type | HUB75 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/8 |
| Brightness | ≥ 4,000 nits |
| Viewing Angle | 140° (H) / 130° (V) |
| Input Voltage | DC 5 V |
| Max Power Consumption | ≤ 30 W per module |
| Average Power Consumption | ≤ 10 W per module |
| Operating Temperature | −20 °C to 70 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Magnetic Front Service / Screw Fixing Rear Service |
| IP Rating | IP65 |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for long-term outdoor commercial use |
Applications
• Outdoor commercial LED advertising screens
• Building façade digital signage
• Stadium ribbon boards and sports arenas
• Shopping mall exterior LED displays
• Public square and transportation hub screens
• Retail storefront outdoor LED video walls
• Outdoor information and branding displays
