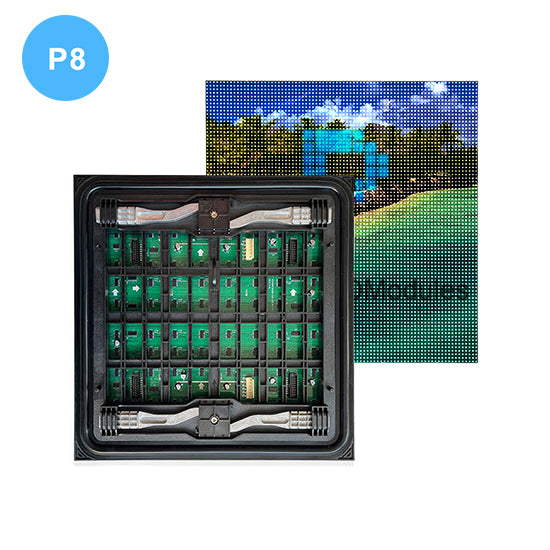

POD-PM Series P8 Outdoor LED Module – 320 × 320 mm IP65 Panel for Commercial Outdoor Screens
The POD-PM Series P8 outdoor LED module is designed for large-scale commercial outdoor screens that require high brightness, strong weather resistance, and long-term operational stability.
With an 8.0 mm pixel pitch and IP65 protection, it is ideal for advertising billboards and large outdoor video walls with long viewing distances.
Two hardware versions are available. Both versions meet the same specifications and performance standards, and the version shipped depends on current stock availability.
Package & Packing Details
| Version | Package Included |
|---|---|
| 1-Pack Sample Kit | 1 × Power Supply Cable 1 × Data Cable 1 × P8 Outdoor LED Module |
| 10-Pack Standard Pack | 10 × Power Supply Cables 10 × Data Cables 10 × P8 Outdoor LED Modules |
About this item
-
8.0 mm pixel pitch is optimized for large-format outdoor LED screens with long viewing distances
-
IP65 waterproof and dustproof design ensures stable operation in rain, dust, wind, and extreme outdoor conditions
-
High-brightness LEDs provide excellent visibility even under strong direct sunlight
-
Standard 320 × 320 mm module size ensures seamless compatibility with mainstream outdoor LED cabinets
-
Rugged construction supports continuous outdoor operation with minimal maintenance
-
High refresh rate ensures flicker-free performance for video playback and camera shooting
-
Uniform brightness and precise color calibration ensure consistent image quality across large display surfaces
-
Designed for long-term outdoor advertising and commercial digital signage installations
Quick Specs
| Specification | Detail |
|---|---|
| Pixel Pitch | 8.0 mm |
| Module Size | 320 × 320 mm |
| Resolution | 40 × 40 dots |
| LED Type | SMD |
| Pixel Density | 15,625 dots/m² |
| Brightness | ≥ 6,500 nits |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/5 |
| Viewing Angle | 140° (H) / 120° (V) |
| Input Voltage | DC 5 V |
| Maintenance | Front or Rear Service |
| Protection Grade | IP65 (front), IP54 (rear) |
Installation & Maintenance Tips
-
Always install modules from the same production batch to ensure uniform brightness and color consistency
-
Make sure cabinets are properly sealed to maintain the IP65 waterproof rating
-
Use outdoor-rated waterproof power and signal connectors
-
Avoid strong impact, bending, or dropping during installation and transportation
-
Perform routine inspections on waterproof seals, cable connections, and module surfaces
-
Clean dust and dirt with a soft cloth and clean water when necessary
Shipping Information
-
Lead Time: In-stock products ship within 1–3 business days
-
Packaging: Waterproof and shock-absorbing packaging with reinforced foam protection
-
Shipping Origin: Shipped directly from warehouse. This product may ship in one of two hardware versions depending on current stock availability. Both versions follow the same specifications and performance standards.
-
Standard Shipping: 9–18 days
-
Express Shipping: 5–9 days
-
Shipping Costs: Calculated automatically based on destination, weight, and dimensions
Full Specifications
| Specification | Detail |
|---|---|
| Series | POD-PM |
| Product Type | Outdoor LED Module |
| Pixel Pitch | 8.0 mm |
| LED Configuration | SMD |
| Module Resolution | 40 × 40 dots |
| Pixel Density | 15,625 dots/m² |
| Module Dimensions | 320 × 320 × 17 mm |
| Module Weight | 1.50 kg |
| Connector Type | HUB75 |
| Color Processing | 12-bit |
| Gray Level | 16–4096 |
| Refresh Rate | ≥ 3,840 Hz |
| Scan Mode | 1/5 |
| Brightness | ≥ 6,500 nits |
| Viewing Angle | 140° horizontal / 120° vertical |
| Input Voltage | DC 5 V |
| Max Power Consumption | 55 W per module |
| Average Power Consumption | 19 W per module |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥ 100,000 hours |
| Maintenance Method | Front or rear service |
| IP Rating | IP65 front / IP54 rear |
| Color Uniformity | ≥ 97% |
| Dead Pixel Rate | ≤ 0.0003 |
| Weather Resistance | Designed for continuous outdoor use in harsh environments |
Applications
-
Commercial outdoor advertising billboards
-
Large outdoor LED video walls
-
Building façade digital signage
-
Shopping mall exterior advertising screens
-
Stadium perimeter displays
-
Public information and landmark LED screens
