PIF-2S Series P1.875 Indoor Flexible LED Module – 240×120mm Bendable SMD Panel | 1.875mm Pixel Pitch | Fine-Pitch Stage Displays | 1pcs / 84pcs

In stock
SKU: PLM-MZ02-PIF-2S-P1.875-01
$21.85
Pixel Pitch
Package Qty

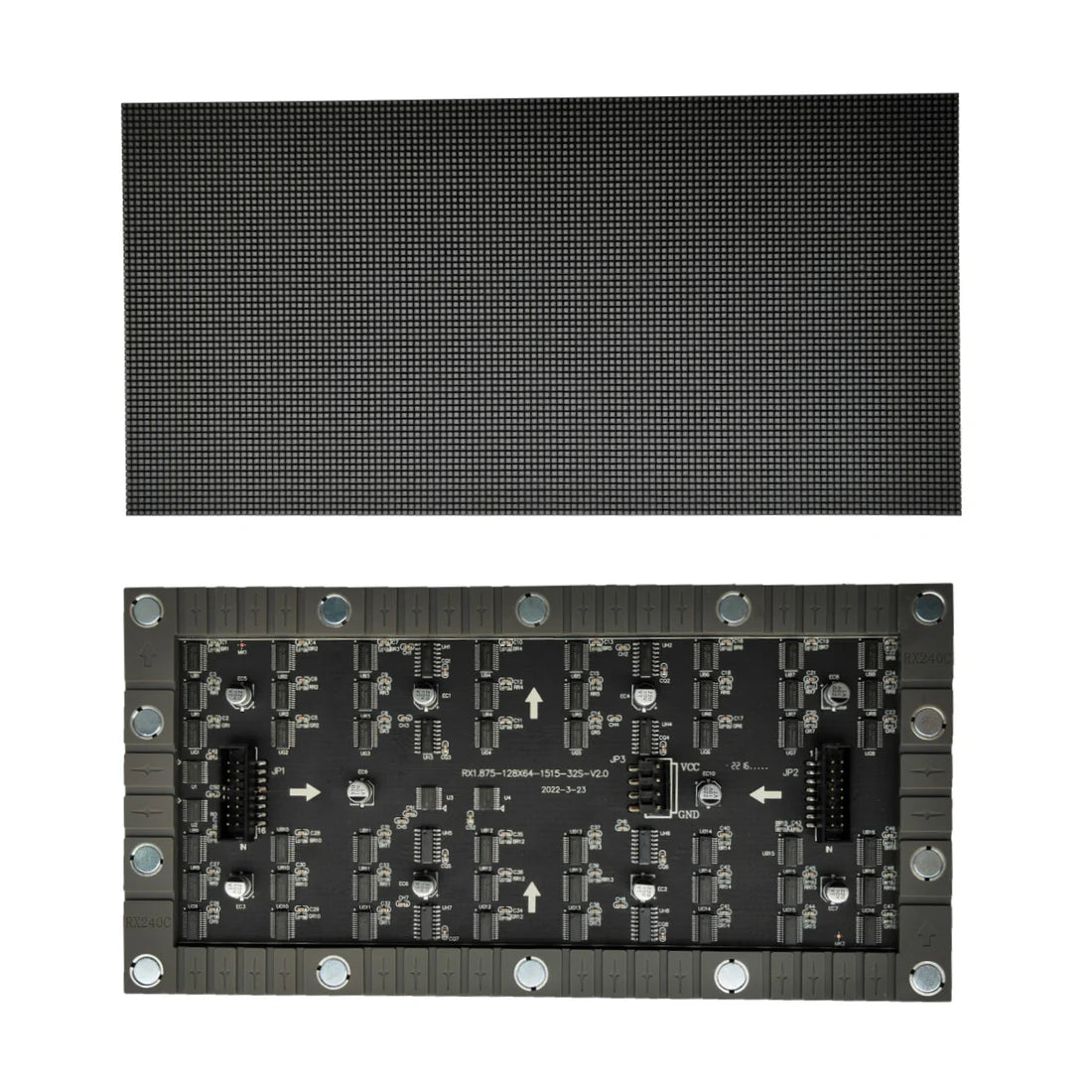

PIF-2S Series P1.875 Indoor Flexible LED Display Module – 240 × 120 mm Bendable LED Screen Panel

The PIF-2S Series P1.875 Indoor Flexible LED Module features an ultra-fine 1.875 mm pixel pitch for premium high-definition curved LED walls and creative stage displays. With its bendable structure and exceptional image clarity, it delivers smooth visuals, accurate colors, and superior detail for close-viewing indoor applications.

Ideal for high-end exhibitions, stage backdrops, broadcast studios, and immersive digital environments where visual precision is critical.

Package & Packing Details

Version Package Included
1-Pack Sample Kit 1 × Power Supply Cable
1 × Data Cable
1 × P1.875 Flexible LED Module
84-Pack Standard Pack 84 × Power Supply Cables
84 × Data Cables
84 × P1.875 Flexible LED Modules

About this item

  • Ultra-fine 1.875 mm pixel pitch provides extremely sharp image detail and superior visual clarity for close-viewing environments

  • Flexible soft PCB structure supports curved, cylindrical, wave-shaped, and custom creative LED screen designs

  • High refresh rate up to 3840 Hz ensures flicker-free, stable video playback for stage filming and broadcast applications

  • High-quality SMD LED technology delivers uniform brightness, precise color reproduction, and excellent long-term stability

  • Magnetic front maintenance design allows fast installation and convenient module replacement without rear access

  • Designed for fine-pitch stage displays, broadcast studios, exhibitions, premium retail spaces, and immersive architectural LED projects

Installation & Maintenance Tips

  • Always use LED modules from the same production batch to ensure uniform brightness and color consistency across the entire LED wall

  • Ensure the mounting surface is flat, smooth, and stable to protect the flexible PCB structure

  • Do not exceed the recommended bending radius to prevent damage to internal circuits and solder joints

  • Magnetic front access allows quick replacement of faulty modules, especially suitable for curved or enclosed installations

  • Use compatible controllers, stable power supplies, and high-quality signal cables to guarantee optimal display performance

  • Regularly inspect module alignment and magnetic contact to maintain a seamless visual appearance

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days

  • Packaging: Safe packaging with foam padding to ensure safe transport

  • Shipping Origin: All products ship directly from our warehouse

  • Standard Shipping: 9–18 days

  • Express Shipping: 5–9 days

  • Shipping Costs: Calculated based on cart weight, dimensions, and destination

Full Specifications

Specification Detail
Model Series PIF-2S Series
Item Type Flexible Indoor LED Module
Pixel Pitch 1.875 mm
Pixel Configuration 1R 1G 1B
LED Configuration SMD1515
Driving IC FM / ICN / Default
Module Resolution 128 × 64 dots
Module Pixels 8192 dots
Pixel Density 284,444 dots/m²
Module Size 240 × 120 × 8.6 mm
Module Weight 0.3 kg
Port Type HUB75
Curvature Capability ≥ 135°
Color Processing 12-bit adjustable
Color Depth 16-bit
Gray Level 16–4096 adjustable
Refresh Rate 3840 Hz
Scan Mode 1/32
Brightness ≥ 600 nits
Contrast Ratio 5000:1
Viewing Distance >2 m
Viewing Angle (H/V) 140° / 120°
Input Voltage DC 5 V
Max Power Consumption 15 W per module
Operating Temperature −20 °C to 40 °C
Storage Temperature −20 °C to 40 °C
Operating Humidity 20% to 75% RH
Lifetime ≥ 100,000 hours
Maintenance Method Magnetic Front Access
Protection Rating IP20
Color Uniformity ≥ 97%
Blind Spot Rate ≤ 0.0003

Applications

This P1.875 flexible indoor LED module is ideal for:

  • Fine-pitch stage LED screens and high-end performance backdrops

  • Broadcast studios and television production environments

  • Premium exhibition booths and trade show LED displays

  • Luxury retail stores, brand showrooms, and flagship shops

  • Architectural LED art installations and immersive interior projects

  • Custom-shaped indoor video walls requiring ultra-high image precision and smooth visual performance
