HUIDU HD-D16 LED Card with 4 HUB75E Ports | Digital Signage Player for LED Display Screens | Wi-Fi & LAN Control, 1080p Playback, 65,000 Pixels

In stock
SKU: PLM-HD-D16
$53.95
Package Qty

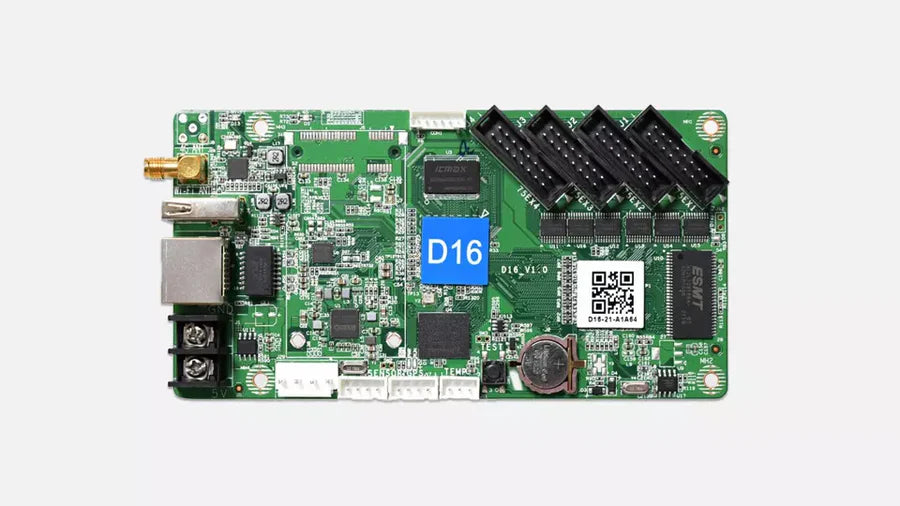

Huidu HD-D16 LED Control Card – Digital Signage Player with 4 HUB75E Ports, WiFi & LAN Control, 1080P Playback, 65,000 Pixel Capacity

The Huidu HD-D16 LED control card is a compact digital signage player designed for small LED display screens and programmable LED message boards.
Featuring WiFi and LAN connectivity, 1080P video playback, and 4 HUB75E output ports, it provides a flexible control solution for advertising displays, store signage, and LED information screens with up to 65,000 pixels.

Packing Details

Version Package Included
HD-D16 1 × Huidu HD-D16 LED Control Card
1 × Power Cable
1 × User Manual

About this item

  • Supports up to 65,000 pixels, suitable for small LED display screens and programmable LED signs

  • Equipped with 4 HUB75E output ports, allowing multiple LED modules to be connected simultaneously

  • Built-in WiFi and LAN connectivity, enabling flexible program uploading and remote display control

  • Supports 1080P video playback, providing smooth multimedia display for advertising content

  • Designed as an asynchronous LED control card, allowing scheduled playback without constant PC connection

  • Compatible with Huidu LED control software and mobile management platforms

  • Compact design allows easy installation inside LED display cabinets or signage enclosures

  • Ideal for digital signage, retail advertising displays, and LED information boards

Quick Specs

Specification Detail
Product Type LED Control Card
Model Huidu HD-D16
Control Mode Asynchronous Control
Max Pixel Capacity 65,000 Pixels
Output Ports 4 × HUB75E
Communication WiFi / LAN
Video Playback 1080P Supported
Supported Content Video, Text, Images, Animation
Control Software Huidu LED Control Software
Application Digital Signage LED Displays

Installation & Maintenance Tips

  • Install the control card securely inside the LED display cabinet or control enclosure

  • Connect LED modules using compatible HUB75E ribbon cables

  • Configure screen resolution and display parameters using Huidu control software

  • Upload display content via WiFi or LAN for flexible program management

  • Ensure stable power supply and proper grounding for reliable operation

  • Keep signal cables organized to simplify maintenance and troubleshooting

Shipping Information

  • Lead Time: In-stock products ship within 1–3 business days

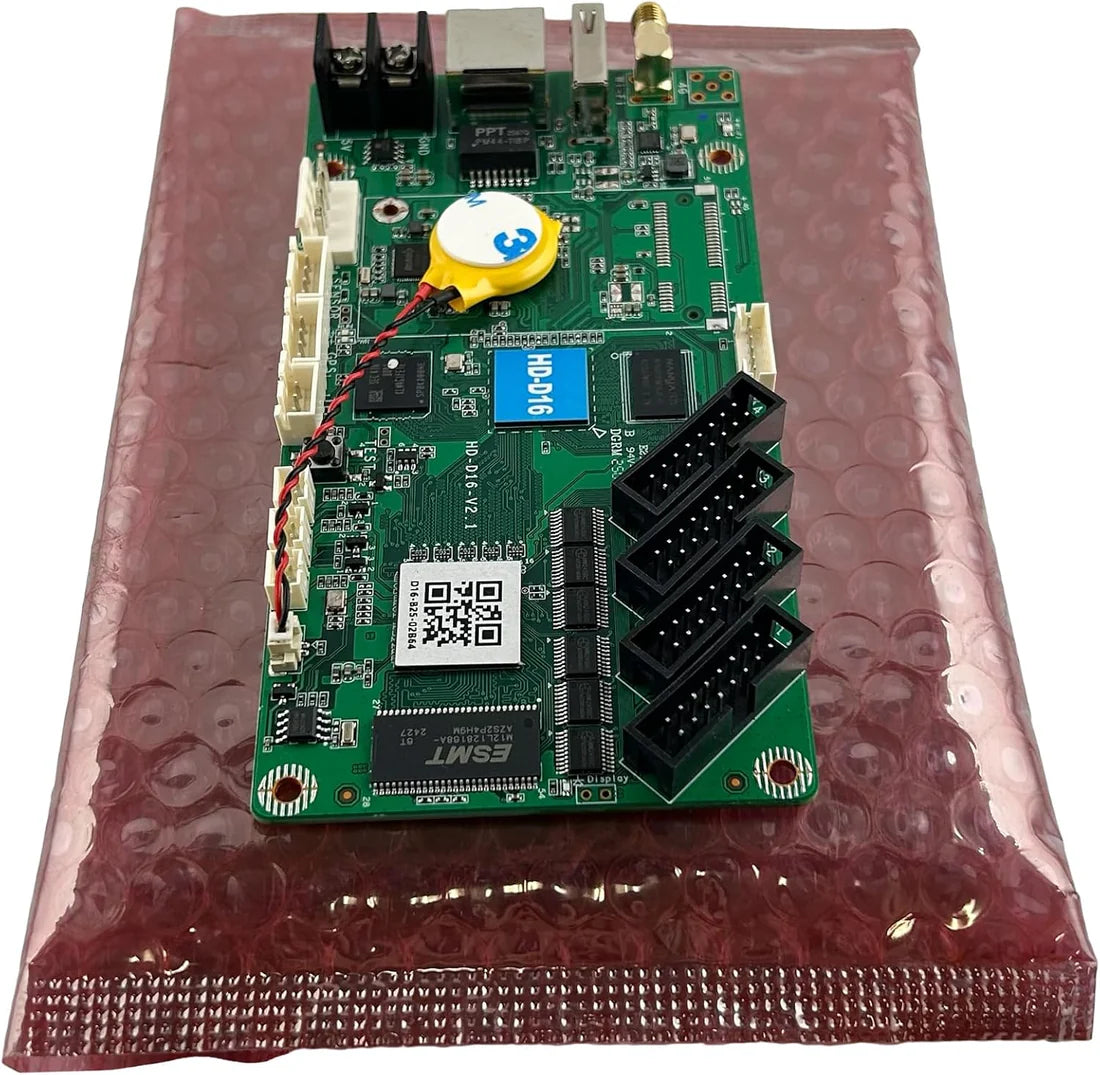

  • Packaging: Anti-static protection with reinforced outer carton to ensure safe transportation

  • Shipping Origin: Shipped directly from warehouse

  • Standard Shipping: 9–18 days

  • Express Shipping: 5–9 days

  • Shipping Costs: Calculated at checkout based on destination and order quantity

Full Specifications

Specification Detail
Brand Huidu
Model HD-D16
Product Category LED Control Card
Control Mode Asynchronous Control
Max Pixel Capacity 65,000 Pixels
Output Ports 4 × HUB75E
Communication Interface WiFi / LAN
Video Playback 1080P
Supported Content Formats Video, Text, Image, Animation
Control Software Huidu LED Control System
Network Interface Ethernet
Storage Built-in storage for program files
Power Supply DC 5 V
Operating Temperature −20 °C to 60 °C
Operating Humidity 10%–90% RH
Installation Method Cabinet internal mounting
Application Environment Indoor LED display systems

Applications

  • Retail LED digital signage

  • Storefront advertising LED displays

  • Restaurant menu LED screens

  • Small commercial LED advertising boards

  • Transportation information LED displays

  • Programmable LED message boards
